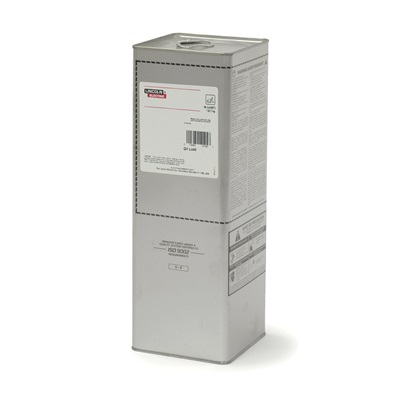

Lincoln Fleetweld 5P+ Ed010278 Cellulose Sodium E6010 Covered Electrode, 1/8 Inch Dia. X 14 Inch L, 50 Lb Easy Open Can ED010278 LINED010278

Detailed Description

Lincoln's Fleetweld® 5P+ is ideal for steel that's less than 100% clean. It's a first choice for pipe welding, and vertical-up and overhead plate welding. This electrode is a long-time favorite among operators who handle cross-country and in-plant pipe welding

Features
  • Deep penetration with maximum admixture
  • Light slag with little slag interference for easy arc control, easy slag removal, smooth bead
  • Capable of x-ray quality welds, even out-of-position
  • Truly all-position, particularly good for vertical and overhead
  • Better bead appearance and slag removal compared to Fleetweld® 5P
  • Manufactured under a quality system certified to ISO 9001 requirements
  • High operator appeal and control
  • Standard in the pipe welding industry
  • Tolerates galvanized, plated, dirty, painted or greasy steel which cannot be completely cleaned

Lincoln® Fleetweld® 5P+ ED010278 Covered Electrode, Diameter: 1/8 Inch, Length: 14 Inch, Current Type: DC+, Amperage: 75 - 135 amp, Package: 50 lb Easy Open Can, AWS Class: AWS A5.1/A5.1M: 2004 E6010, Coating: Cellulose Sodium, Tensile Strength: 73 - 88 ksi (As Welded), Yield Strength: 60 - 73 ksi (As Welded), Elongation in 2" (%): 22 - 29% (As Welded), Charpy V-Notch: 51 - 93 ft.-lb. At -20 deg F Temperature (As Welded), Welding Process: SMAW (Stick), Weld Metal Composition: 0.09-0.20% Carbon (C), 0.46-0.79% Manganese (Mn), 0.10-0.32% Silicon (Si), 0.005-0.017% Phosphorus (P), 0.004-0.014% Sulfur (S), ? 0.04% Nickel (Ni), ? 0.04% Chromium (Cr), ? 0.02% Molybdenum (Mo), ? 0.01% Vanadium (V), Applicable Materials: Steel

Technical Details

Amperage
75 - 135 amp
Applicable Materials
Steel
AWS Class
AWS A5.1/A5.1M: 2004 E6010
Charpy V-Notch
51 - 93 ft.-lb. At -20 deg F Temperature (As Welded)
Coating
Cellulose Sodium
Current Type
DC+
Diameter
1/8 Inch
Elongation in 2" (%)
22 - 29% (As Welded)
Length
14 Inch
Package
50 lb Easy Open Can
Tensile Strength
73 - 88 ksi (As Welded)
Weld Metal Composition
0.09-0.20% Carbon (C), 0.46-0.79% Manganese (Mn), 0.10-0.32% Silicon (Si), 0.005-0.017% Phosphorus (P), 0.004-0.014% Sulfur (S), ? 0.04% Nickel (Ni), ? 0.04% Chromium (Cr), ? 0.02% Molybdenum (Mo), ? 0.01% Vanadium (V)
Welding Process
SMAW (Stick)
Yield Strength
60 - 73 ksi (As Welded)
