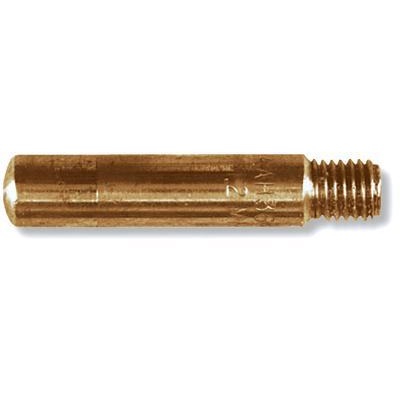

Profax Tweco Professional Px14-35 0.044 Inch 122 Dhp Copper Alloy 14 Series Standard Contact Tip, 0.035 Inch Wire PX14-35 PFXPX14-35

Detailed Description

Increase productivity with longer life front end consumables using Tweco® Spray Master MIG gun series with eliminator front end consumables. Combined with all the advantages of the Spray Master, this new line of mig guns helps the shop floor lower usage cost with improved operator appeal. With over 40 plus years of experience delivering dependable and durable mig welding consumables for light to heavy metal fabrication

Features
  • Used in standard welding application up to 400 amp
  • Easy identification - each contact tip is marked showing part no and wire diameter
  • Inside diameter tolerance is held to +/-.003 inch
  • Machined from a copper alloy tubing providing a consistent and smooth inside diameter surface
  • Contact tips manufactured from extruded or gun-drilled copper alloy
  • Contact tips in either threaded and/or twist lock eliminator style contact tips for eliminator style gas diffuser
  • Threaded style contact tip to ensure proper contact with a gas diffuser when installed to the mig gun
  • Slip-on or thread-on nozzle styles with a choice of diameter bore sizes
  • Gas diffusers designed for specific MIG gun series
  • Twist-it and forget it-twist it and it locks in place, no threads to worry about
  • Increased surface contact between contact tip/diffuser for better electrical conductivity
  • Double tip life-twist it quarter turn clockwise, gas metal arc welding process
  • When tip wear point is reached after use, twist it half turn counter-clockwise to expose a new wear point this doubles the life of the tip
  • Thick-walled diffuser design acts as heat sink and conducts heat away from the arc source, increases electrical conductive surface area and thereby increases electrical conductivity

Profax® Tweco®, Professional PX14-35 MIG Gun Consumable, Standard Contact Tip, Style: Threaded/Twist Lock, 1/4 Inch Outer Diameter x 1-1/2 Inch Length, Connection: 1/4-28 UNF-2A, 122 DHP Copper Alloy, Tip Size: 0.044 Inch, Wire Size: 0.035 Inch, Amperage: 400 amp, Series: 14 Series

Technical Details

Amperage
400 amp
Connection
1/4-28 UNF-2A
Dimensions
1/4 Inch Outer Diameter x 1-1/2 Inch Length
Material
122 DHP Copper Alloy
Series
14 Series
Style
Threaded/Twist Lock
Tip Size
0.044 Inch
Type
Standard Contact Tip
Wire Size
0.035 Inch
