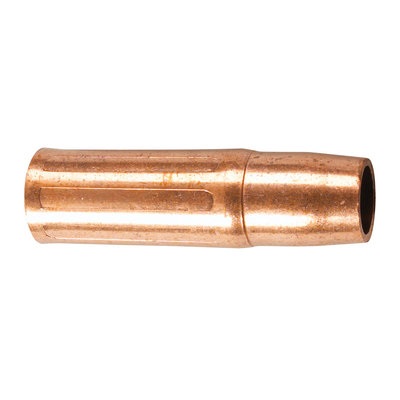

Profax Tweco Professional Px23-50 1/2 Inch 122 Dhp Copper Alloy 23-Series Self-Insulated Recess Tip Nozzle, 450 Amp PX23-50 PFXPX23-50

Detailed Description

Increase productivity with longer life front end consumables using Tweco® Spray Master MIG gun series with eliminator front end consumables. Combined with all the advantages of the Spray Master, this new line of mig guns helps the shop floor lower usage cost with improved operator appeal. Selecting the right nozzle for a welder's preferred "nozzle to tip relationship" on a mig gun is generally based on the application and the welder's daily welding routine

Features
  • 3-piece nozzle design - does not require an additional insulator
  • Nozzle housing - cut and formed from 122 DHP copper alloy tubing
  • Nozzle insert - machined from a solid brass allow and machining the internal threads to match the conductor tube od threads
  • Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
  • Easy identification - part no rolled stamped on the outside surface
  • Nozzle threads onto the conductor tube assembly
  • Recessed tips are generally used for higher heat applications where longer electrical stick-out is required or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
  • Gas metal arc welding process (air- cooled)

Profax® Tweco®, Professional PX23-50 MIG Gun Consumable, Self-Insulated Recess Tip Nozzle, Style: Threaded, 7/8 Inch Outer Diameter x 3.219 Inch Length, 1/8 - 5/32 Inch Recessed, Connection: 9/16-18 UNC-2B, 122 DHP Copper Alloy, Tip Size: 1/2 Inch, Amperage: 450 amp, Series: 23 Series, For Type/Brand/Model: #3 And #4 MIG Gun, 54P, 54A, 54A-16 Standard Gas Diffuser

Technical Details

Amperage
450 amp
Connection
9/16-18 UNC-2B
Dimensions
7/8 Inch Outer Diameter x 3.219 Inch Length, 1/8 - 5/32 Inch Recessed
For Type/Brand/Model
#3 And #4 MIG Gun, 54P, 54A, 54A-16 Standard Gas Diffuser
Material
122 DHP Copper Alloy
Series
23 Series
Style
Threaded
Tip Size
1/2 Inch
Type
Self-Insulated Recess Tip Nozzle
