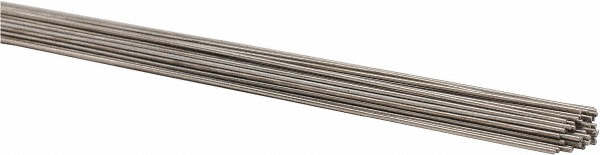

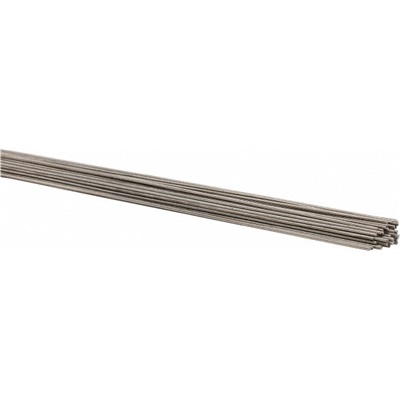

Oxford Alloys Metallic Luster ER317L Stainless Steel Bare Rod, 1/8 Inch dia. x 36 Inch L

$176.80 / 10 lb tube

Our Id: OXF317L1/8X36
Manufacturer Id: 317L1/8X36

Quantity:

Add To Cart

Add To List

Est. 5 day delivery.

Check Store Inventory

Detailed Description

Oxford Alloy ER317L is used for welding stainless steels with similar composition. This alloy offers high resistance to pitting and crevice corrosion because of its high molybdenum content. The lower carbon content of the Oxford Alloy ER317L makes the weld metal less susceptible to intergranular corrosion

100% argon shielding gas for TIG (GTAW)
99% argon + 1% oxygen/97% argon + 3% Co2 shielding gas for MIG (GAW)
15 - 20 volt TIG (GTAW), 29 - 32 volt (SAW)

Oxford Alloys® 317L1/8X36 Stainless Steel Bare Rod, Diameter: 1/8 Inch, Length: 36 Inch, Amperage: 150 - 220 amp TIG (GTAW), 350 - 450 amp (SAW), AWS Class: AWS 5.9: ER317L, Metallic Luster, Tensile Strength: 82650 psi, Yield Strength: 59450 psi, Elongation in 2" (%): 42%, Welding Process: TIG (GTAW)/MIG/SAW, Weld Metal Composition: 0.03% Carbon (C), 1.0 - 2.5% Manganese (Mn), 0.30 - 0.65% Silicon (Si), 18.5 - 20.5% Chromium (Cr), 13.0 - 15.0% Nickel (Ni), 0.03% Sulphur (S), 0.03% Phosphorus (P), 0.75% Copper (Cu), 3.0 - 4.0% Molybdenum (Mo), Applicable Materials: Stainless Steel

Technical Details

Amperage	150 - 220 amp TIG (GTAW), 350 - 450 amp (SAW)
Applicable Materials	Stainless Steel
AWS Class	AWS 5.9: ER317L
Color	Metallic Luster
Diameter	1/8 Inch
Elongation in 2" (%)	42%
Length	36 Inch
Tensile Strength	82650 psi
Weld Metal Composition	0.03% Carbon (C), 1.0 - 2.5% Manganese (Mn), 0.30 - 0.65% Silicon (Si), 18.5 - 20.5% Chromium (Cr), 13.0 - 15.0% Nickel (Ni), 0.03% Sulphur (S), 0.03% Phosphorus (P), 0.75% Copper (Cu), 3.0 - 4.0% Molybdenum (Mo)
Welding Process	TIG (GTAW)/MIG/SAW
Yield Strength	59450 psi
