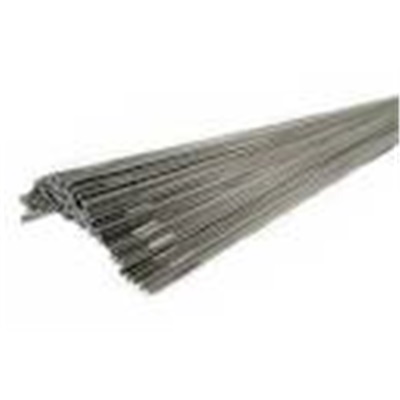

Oxford Alloys Metallic Luster Er309/309L Stainless Steel Bare Rod, 1/8 Inch Dia. X 36 Inch L 309L1/8X36 OXF309L1/8X36

Detailed Description

Oxford Alloy ER309L is of similar composition as Oxford Alloy ER309 except for the carbon content being lower than .03%.This lower carbon content reduces the possibility of intergranular carbide precipitation. This increases the resistance of intergranular corrosion without the use of stabilizers such as columbium (niobium) or titanium. Strength of this low-carbon alloy; however, may not be as great at elevated temperatures as that of the columbium (niobium)-stabilized alloys or ER309. Oxford Alloy ER309L is preferred over Oxford Alloy ER309 for cladding over carbon or low alloy steels, as well as for dissimilar joints that undergo heat treatment

Features
  • 100% argon shielding gas for TIG (GTAW)
  • 99% argon + 1% oxygen/97% argon + 3% Co2 shielding gas for MIG (GAW)
  • 15 - 20 volt TIG (GTAW), 29 - 32 volt (SAW)

Oxford Alloys® 309L1/8X36 Stainless Steel Bare Rod, Diameter: 1/8 Inch, Length: 36 Inch, Amperage: 150 - 220 amp TIG (GTAW), 350 - 450 amp (SAW), AWS Class: AWS 5.9: ER309/309L, Metallic Luster, Tensile Strength: 85550 psi, Yield Strength: 58000 psi, Elongation in 2" (%): 40%, Welding Process: TIG (GTAW)/MIG/SAW, Weld Metal Composition: 0.03% Carbon (C), 23.0 - 25.0% Chromium (Cr), 12.0 - 14.0% Nickel (Ni), 0.75% Molybdenum (Mo), 1.0 - 2.5% Manganese (Mn), 0.30 - 0.65% Silicon (Si), 0.03% Phosphorus (P), 0.03% Sulphur (S), 0.75% Copper (Cu), Applicable Materials: Stainless Steel, Carbon, Low Alloy Steel

Technical Details

Amperage
150 - 220 amp TIG (GTAW), 350 - 450 amp (SAW)
Applicable Materials
Stainless Steel, Carbon, Low Alloy Steel
AWS Class
AWS 5.9: ER309/309L
Color
Metallic Luster
Diameter
1/8 Inch
Elongation in 2" (%)
40%
Length
36 Inch
Tensile Strength
85550 psi
Weld Metal Composition
0.03% Carbon (C), 23.0 - 25.0% Chromium (Cr), 12.0 - 14.0% Nickel (Ni), 0.75% Molybdenum (Mo), 1.0 - 2.5% Manganese (Mn), 0.30 - 0.65% Silicon (Si), 0.03% Phosphorus (P), 0.03% Sulphur (S), 0.75% Copper (Cu)
Welding Process
TIG (GTAW)/MIG/SAW
Yield Strength
58000 psi
