Tendency for "fingernailing" and electrode sticking have been virtually eliminated! Designed for all passes of API 5LX-52 through X65 high strength pipe. Provides the welder with a clean, visible weld puddle and superior puddle control
- Deep penetration with maximum admixture
- Light slag with little slag interference for easy arc control
- Capable of x-ray quality welds, even out-of-position
- All position, pipe welding low alloy steel stick electrode
- Clean, visible weld puddle
- Superior puddle control
- Flat, horizontal, vertical up, overhead welding positions

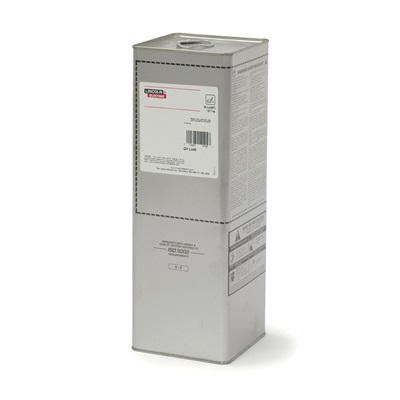

Lincoln® Shield-Arc® Hyp+ ED029509 Cored Electrode, Diameter: 3/16 Inch, Length: 14 Inch, Current Type: DC+, Amperage: 140 - 225 amp, Package: 50 lb Easy Open Can, AWS Class: AWS A5.5/A5.5M: 2006 E7010-P1, E7010-G, Coating: Cellulose Sodium, Tensile Strength: 76 - 92 ksi, Yield Strength: 63 - 76 ksi, Elongation in 2" (%): 22 - 28% (As Welded), Charpy V-Notch: 20 - 41 ft.-lb. At -20 deg F Testing Temperature (As Welded), Welding Process: SMAW (Stick), Weld Metal Composition: 0.13-0.17% Carbon (C), 0.49-0.63% Manganese (Mn), 0.08-0.18% Silicon (Si), ? 0.01% Phosphorus (P), ? 0.01% Sulfur (S), 0.01-0.02% Nickel (Ni), 0.02% Chromium (Cr), 0.27-0.31% Molybdenum (Mo), < 0.01% Vanadium (V), Applicable Materials: Low Alloy Steel
