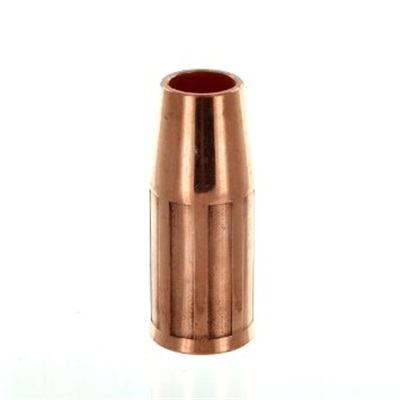

Tweco Weldskill 1210-1341 1/2 Inch 122 Dhp Copper Alloy 21 Series Standard Recessed Tip Nozzle, 180 Amp 12101341 TWE1210-1341

Detailed Description

Increase productivity with longer life front end consumables using Tweco® Spray Master MIG gun series with eliminator front end consumables. Combined with all the advantages of the Spray Master, this new line of mig guns helps the shop floor lower usage cost with improved operator appeal

Features
  • 3-piece nozzle design includes nozzle housing - cut and formed from copper alloy tubing
  • Nozzle insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser
  • Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
  • Easy identification - part no rolled stamped on the outside surface 3-piece design - does not require an additional insulator
  • Nozzle threads onto the gas diffuser
  • Operator appeal with an ergonomic handle with diamond pattern for better grip
  • Long life trigger tested at over 1.2 million cycles without failure
  • Rugged steel spring stain relief for durability and robustness
  • Self-insulated
  • Gas metal arc welding process (air- cooled)

Tweco® WeldSkill® 1210-1341 MIG Gun Consumable, Standard Recessed Tip Nozzle, Style: Threaded, 3/4 Inch Outer Diameter x 2.224 Inch Length, 1/8 - 5/32 Inch Recessed, Connection: M11 x 1.5-6H, 122 DHP Copper Alloy, Tip Size: 1/2 Inch, Amperage: 180 amp, Series: 21 Series, For Type/Brand/Model: Standard Gas Diffuser Part No. 51 (Stock No. 1510-1101), Part No. 51-23 (Stock No. 1510-1100), MIG Guns WM180, Mini And #1

Technical Details

Amperage
180 amp
Connection
M11 x 1.5-6H
Dimensions
3/4 Inch Outer Diameter x 2.224 Inch Length, 1/8 - 5/32 Inch Recessed
For Type/Brand/Model
Standard Gas Diffuser Part No. 51 (Stock No. 1510-1101), Part No. 51-23 (Stock No. 1510-1100), MIG Guns WM180, Mini And #1
Material
122 DHP Copper Alloy
Series
21 Series
Style
Threaded
Tip Size
1/2 Inch
Type
Standard Recessed Tip Nozzle
