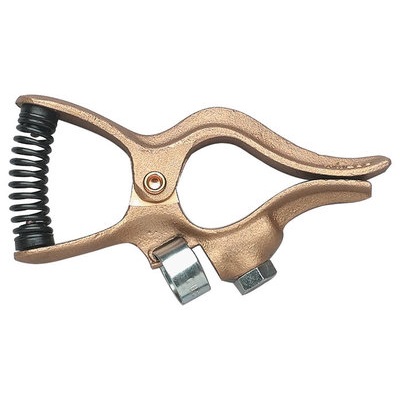

Tweco 92051120 Copper Alloy Ground Clamp For Smaw, Saw, Gmaw, Fcaw Processes, 1/0 Awg, 200 Amp, 1 Inch Jaw Opening 92051120 TWE9205-1120

Detailed Description

Features
  • GC-200 model
  • Copper cast upper and lower jaws
  • Heavy-duty spring providing the clamping force to the work surface
  • Insulated spring
  • Designed primarily to work in conjunction with the Tweco roto-ground device
  • They may also be used for other high amperage grounding applications
  • The roto-ground shaft screws into the tapped back of the roto-work clamp
  • The clamp is quickly attached or moved from one rotating weldment or fixture to the other without removing the roto-ground from it, saves welding down time
  • Large tightening screws and ample contact surface area provide cool, efficient operation
  • Rugged and reliable design
  • Ball point screw secures the welding cable to the ground clamp

Tweco® 92051120 Ground Clamp, Cable Capacity: 1/0 AWG, Amperage Capacity: 200 amp, Length: 6 Inch, Jaw Opening: 1 Inch, Jaw Opening Depth: 3 Inch, Copper Alloy, Connection: Cable: Ball-Point

Technical Details

Amperage Capacity
200 amp
Cable Capacity
1/0 AWG
Connection
Cable: Ball-Point
Jaw Opening
1 Inch
Jaw Opening Depth
3 Inch
Length
6 Inch
Material
Copper Alloy
