Select 727 was developed to provide improved deposition rates and enhanced welder appeal, compared to conventional electrodes. This electrode is intended for single and multiple pass welding of carbon steels and is designed for use with 100% carbon dioxide and 75 - 80% argon/balance carbon dioxide
- Fast freezing slag facilitates all position capability
- Superior bead geometry to conventional E71T-1 electrodes
- Reduced fume emissions and spatter level
- 100% Co2, 75 - 80% argon/balance Co2 shielding gas
- All welding positions
- 35 - 50 cfh gas flow
- The combination of strength and toughness make Select 727 ideal for welding carbon steels requiring a minimum tensile strength of 70000 psi
- 25 volt (vertical up), 26 volt (overhead), 28 volt (flat)
- 265 in./min. (vertical up/overhead), 410 in./min. wire feed speed

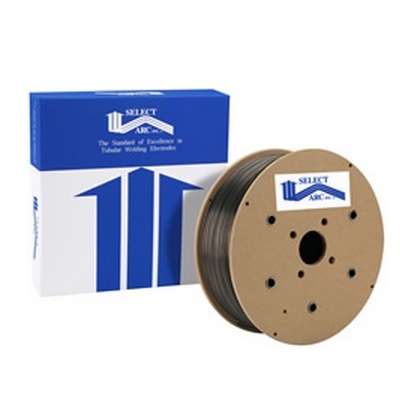

Select ArcĀ® 1211545 Flux-Cored Wire, Gas Shielded, Diameter: 3/64 Inch, Amperage: 250 amp (Flat), 200 amp (Overhead/Vertical Up), Package: 45 lb Spool, AWS Class: AWS A5.20: E71T-1C, E71T-1M, E71T-9C, E71T-9M, Tensile Strength: 89100 psi (CO2), Yield Strength: 78100 psi (CO2), Elongation in 2" (%): 26% (CO2), Charpy V-Notch: 70 ft.-lb. At -20 deg F (CO2), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.05% Carbon (C), 1.39% Manganese (Mn), 0.008% Phosphorus (P), 0.010% Sulphur (S), 0.56% Silicon (Si), Applicable Materials: Carbon Steel, ASTM A131, A285, A515 Gr 70 And A516 Gr 70 Steel
