Oxford Alloy 2209 is designed to weld duplex stainless steels such as 2205 (UNS Number N31803). High tensile strength and improved resistance to stress corrosion cracking and pitting characterize the welds of this wire. This wire is lower in ferrite compared to that of base metal in order to obtain improved weldability
- 100% argon shielding gas for TIG (GTAW)
- 99% argon + 1% oxygen/97% argon + 3% Co2 shielding gas for MIG (GMAW)
- 14 - 18 volt TIG (GTAW), 29 - 33 volt MIG (GMAW)

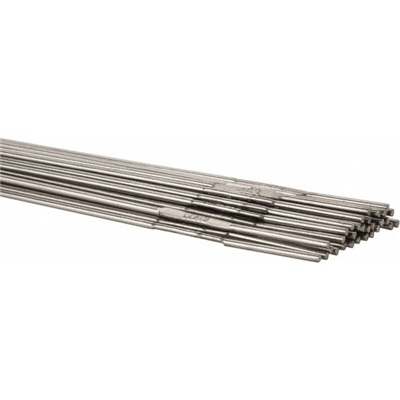

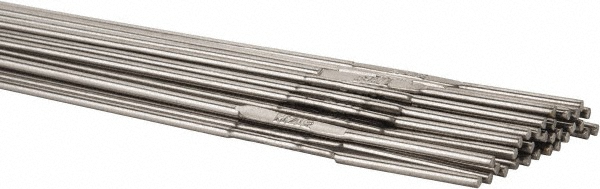

Oxford Alloys® 22091/16X36 Stainless Steel Bare Rod, Diameter: 1/16 Inch, Length: 36 Inch, Amperage: 90 - 130 amp TIG (GTAW), 200 - 250 amp MIG (GMAW), AWS Class: AWS 5.9: ER2209, Metallic Luster, Tensile Strength: 104400 psi, Yield Strength: 81200 psi, Elongation in 2" (%): 26%, Welding Process: TIG (GTAW)/MIG/SAW, Weld Metal Composition: 0.03% Carbon (C), 0.50 - 2.0% Manganese (Mn), 0.90% Silicon (Si), 21.5 - 23.5% Chromium (Cr), 7.5 - 9.5% Nickel (Ni), 2.5 - 3.5% Molybdenum (Mo), 0.03% Sulphur (S), 0.03% Phosphorus (P), 0.75% Copper (Cu), 0.08 - 0.20% Nitrogen (N), Applicable Materials: Duplex Stainless Steel Such As 2205 (UNS N31803)
