Smooth arc transfer, low spatter and good bead appearance make Outershield® 71 Elite a top quality electrode. Operators will enjoy the well directed arc with small ball transfer. The fast freezing slag system makes out-of-position welding easy
- Smooth arc transfer and low spatter
- Designed for welding with either 100% Co2 or 75 - 82% argon/balance Co2 shielding gases
- Good bead appearance
- Fast freezing slag for out-of-position welding
- Meets AWS D1.8 seismic lot waiver requirements
- 40 - 50 cfh gas flow
- 1.7 - 6 kg/hr (75% argon/25% Co2) melt-off rate
- 87% (75% argon/25% Co2) efficiency
- 4.5 - 15.3 m/min (75% argon/25% Co2) wire feed speed
- 21 - 31 volt (75% argon/25% Co2)
- 1.5 - 5.2 kg/hr (75% argon/25% Co2) deposition rate

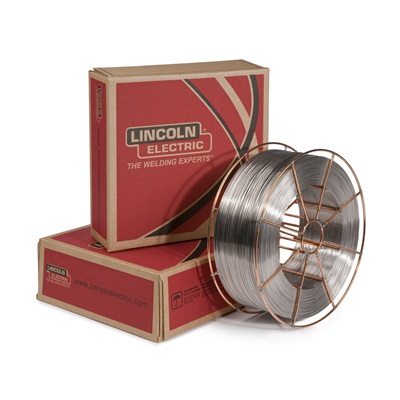

Lincoln® Outershield® 71 Elite ED029201 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: 3/64 Inch, Current Type: DC+, Amperage: 130 - 290 amp (75% Argon/25% CO2), Package: 33 lb Steel Spool, AWS Class: AWS A5.20/A5.20M: 2005 - E71T-1C-H8, E71T-9C-H8, E71T-1M-H8, E71T-9M-H8, AWS D1.8, Tensile Strength: 91 - 92 ksi (As Welded With 75% Argon/25% CO2), Yield Strength: 85 - 87 ksi (As Welded With 75% Argon/25% CO2), Elongation in 2" (%): 25 - 28% (As Welded With 75% Argon/25% CO2), Charpy V-Notch: 92 - 99 J At -18 deg F, Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.02 - 0.04% Carbon (C), 1.55 - 1.65% Manganese (Mn), 0.56 - 0.75% Silicon (Si), <=0.01% Sulphur (S), <=0.01% Phosphorous (P)
