Alloy 5356 is an all position non-heat treatable TIG wire used to weld the 5XXX series alloys when 40000 psi tensile strength is not a requirement. Alloy 5356 is a very good all purpose wire so it is the most widely used of all aluminum fillers metals
- Argon shielding gas
- 1060 deg F solidus temperature
- 1175 deg F liquidus temperature
- 0.096 lb/cu.in. density
- 15 volt ACHF
- 20 cfh argon gas flow

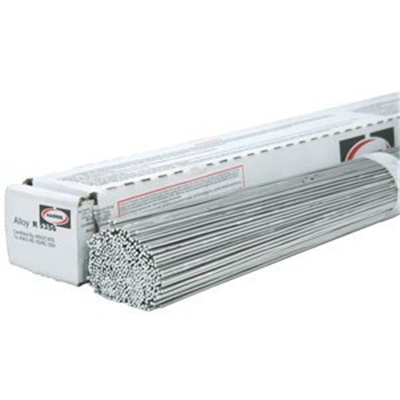

Harris® 0535650 Aluminum Welding Wire, Gas Shielded, Diameter: 3/32 Inch, Length: 36 Inch, Current Type: ACHF, Amperage: 70 - 100 amp, Package: 5 lb Box, AWS Class: AWS A5.10, White Post-Anodize, Tensile Strength: 39000 psi, Yield Strength: 19000 psi, Elongation in 2" (%): 17%, Welding Process: TIG (GTAW), Weld Metal Composition: 0.25% Silicon (Si), 0.4% Iron (Fe), 0.1% Copper (Cu), 0.05 - 0.2% Manganese (Mn), 4.5 - 5.5% Magnesium (Mg), 0.05 - 0.2% Chromium (Cr), 0.1% Zinc (Zn), 0.06 - 0.2% Titanium (Ti), Rem% Aluminum (Al), 0.15% Others, Applicable Materials: Aluminum
