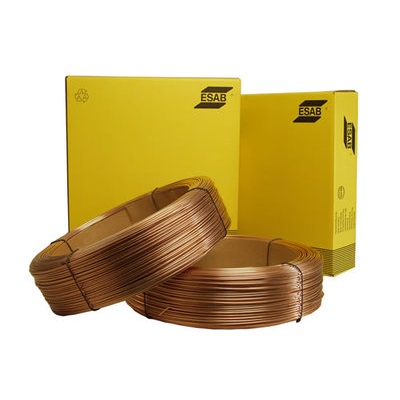

Esab Spoolarc 86 1382F05 Copper Coated Solid Er70s-6 Carbon Steel Welding Wire, 0.035 Inch Dia., 44 Lb Spool 1382F05 ESA1382F05

Detailed Description

Spoolarc 86 is a copper-coated solid wire containing high levels of manganese and silicon. Spoolarc 86 is suitable for many carbon steel welding applications using the MIG/gas metal arc welding (GMAW) process. The high levels of deoxidizers in Spoolarc 86 provide excellent tolerance of rust and mill scale. The high levels of manganese and silicon also provide excellent wetting action and a highly fluid weld puddle. Shielding gas choices for Spoolarc 86 in the GMAW mode are 100% carbon dioxide, argon/carbon dioxide mixtures, argon/oxygen mixtures, and other argon based mixed gas blends. Spoolarc 86 excels in HVAC duct work, heavy equipment fabrication, structural, and other general steel fabrication

ESAB® Spoolarc® 86 1382F05 Carbon Steel Welding Wire, Solid, Diameter: 0.035 Inch, Spool Diameter: 12 Inch, Amperage: 80 - 250 amp, Package: 44 lb Spool, AWS Class: AWS A5.18: ER70S-6 H4, AWS SFA5.18: ER70S-6, Copper-Coated, Tensile Strength: 82 ksi, Yield Strength: 68000 psi, Elongation in 2" (%): 30% (As Welded), Charpy V-Notch: 45 ft.-lb. At -20 deg F, Welding Process: MIG (GMAW And SAW), Weld Metal Composition: 0.09% Carbon (C), 1.08% Manganese (Mn), 0.51% Silicon (Si), 0.014% Phosphorus (P), 0.01% Sulphur (S)

Technical Details

80 - 250 amp
AWS Class
AWS A5.18: ER70S-6 H4, AWS SFA5.18: ER70S-6
Charpy V-Notch
45 ft.-lb. At -20 deg F
0.035 Inch
Elongation in 2" (%)
30% (As Welded)
44 lb Spool
Spool Diameter
12 Inch
Tensile Strength
82 ksi
Weld Metal Composition
0.09% Carbon (C), 1.08% Manganese (Mn), 0.51% Silicon (Si), 0.014% Phosphorus (P), 0.01% Sulphur (S)
Welding Process
Yield Strength
68000 psi
