Esab Dual Shield Ii 70 Ultra 245013321 E71t Gas Shielded Mild Steel Flux-Cored Wire, 0.052 Inch, 33 Lb Plastic Spool 245013321 ESA245013321

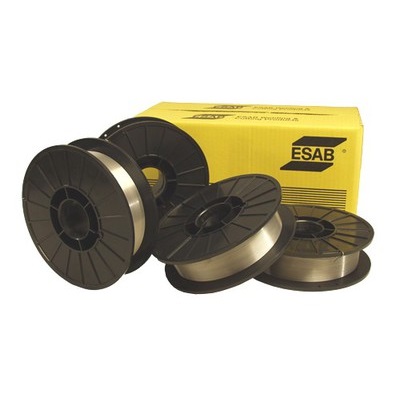

ESAB® Dual Shield II 70 Ultra® 245013321 E71T Gas Shielded Mild Steel Flux-Cored Wire, 0.052 Inch, 33 lb Plastic Spool

$187.84 / 33 lb spool

Our Id: ESA245013321
Manufacturer Id: 245013321
Check Store Inventory

Detailed Description

Dual Shield II 70 Ultra is an all-position flux cored wire that displays exceptional impact properties when used with 75% argon/25% CO2. The improved properties qualify this wire to the Navy’s "HY" classifi cation. The "Ultra" series produces smoother arc characteristics and lower welding fumes. Dual Shield II 70 Ultra was developed to join low and medium carbon steel. The military classification allows Dual Shield II 70 Ultra to be used for attaching steels of less than 81 ksi (560 MPa) yield to HY-80 and HY-100

Features
  • Outstanding all position performance and a fume emission rate approaching that of solid wires
  • Very wide operating window, very high out of position deposition rates (vertical up and overhead at over 12 lb/hr), and welds that are virtually spatter free
  • 21 - 25 volt
  • 150 - 400 in./min. wire feed speed
  • 4.01 - 10.92 lb/hr deposition rate
  • 83.5 - 85.48% efficiency

ESAB® Dual Shield II 70 Ultra® 245013321 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: 0.052 Inch, Amperage: 150 - 308 amp, Package: 33 lb Plastic Spool, AWS Class: AWS A5.20: E71T-1M/T-9M/T-12M, Tensile Strength: 81 ksi (As Welded), Yield Strength: 72 ksi (As Welded), Elongation in 2" (%): 29% (As Welded), Charpy V-Notch: 70 ft.-lb. At -29 deg C Testing Temperature (As Welded 75% Argon/25% CO2), Reduction in Area: 75% (As Welded), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.04% Carbon (C), 1.0% Manganese (Mn), 0.4% Silicon (Si), 0.008% Phosphorus (P), 0.009% Sulphur (S), Melting Range: >1000 deg C, Applicable Materials: Low And Medium Carbon Steel

Technical Details

Amperage
150 - 308 amp
Applicable Materials
Low And Medium Carbon Steel
AWS Class
AWS A5.20: E71T-1M/T-9M/T-12M
Charpy V-Notch
70 ft.-lb. At -29 deg C Testing Temperature (As Welded 75% Argon/25% CO2)
Diameter
0.052 Inch
Elongation in 2" (%)
29% (As Welded)
Melting Range
>1000 deg C
Package
33 lb Plastic Spool
Reduction in Area
75% (As Welded)
Tensile Strength
81 ksi (As Welded)
Type
Gas Shielded
Weld Metal Composition
0.04% Carbon (C), 1.0% Manganese (Mn), 0.4% Silicon (Si), 0.008% Phosphorus (P), 0.009% Sulphur (S)
Welding Process
FCAW (Flux Core)
Yield Strength
72 ksi (As Welded)
