Atom Arc 8018 electrodes deposit 1% Ni weld metal. They are used primarily to weld high-tensile steels in the 70-80 ksi (483-552 MPa) tensile strength range, especially where notch toughness at temperatures as low as -40 deg F (-40 deg C) is required
- Moisture resistant coatings are incorporated in all AtomArc® electrodes, flux coatings are manufactured to effectively resist moisture pick-up in opened containers, improved coating provides an extra degree of reliability, especially for electrodes exposed to high humidity environments
- The flux coatings are manufactured to effectively resist moisture pick-up in opened containers
- The improved coating provides an extra degree of reliability, especially for electrodes exposed to high humidity environments
- Flat, horizontal, vertical up, overhead welding positions
- Medium penetration
- 3.1 lb/hr at 140 amp, 3.8 lb/hr at 170 amp deposition rate, 75% at 140 amp, 73.5% at 170 amp efficiency

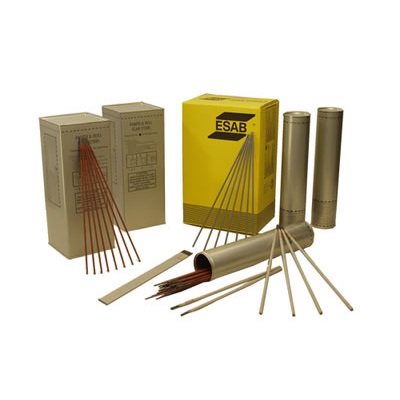

ESAB® AtomArc® 8018 255045312 Covered Electrode, Diameter: 5/32 Inch, Length: 14 Inch, Current Type: AC/DC+, Amperage: 130 - 220 amp, Package: 50 lb Hermetically Sealed Can, AWS Class: AWS A5.5: E8018-C3, Coating: Low Hydrogen Iron Powder, Tensile Strength: 85 ksi (As Welded), Yield Strength: 74 ksi (As Welded), Elongation in 2" (%): 30% (As Welded), Charpy V-Notch: 124 ft.-lb. At -20 deg F Testing Temperature (As Welded), Welding Process: SMAW (Stick), Weld Metal Composition: 0.046% Carbon (C), 1.11% Manganese (Mn), 0.33% Silicon (Si), 0.011% Phosphorus (P), 0.009% Sulfur (S), 0.97% Nickel (Ni), 0.13% Molybdenum (Mo), Melting Range: >2300 deg F, Applicable Materials: High Tensile Steel
