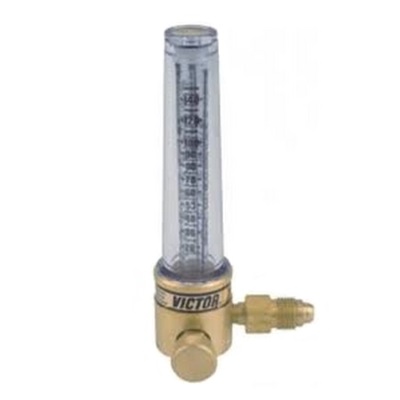

Victor Professional Flow Meter FM 200, Single Gas Calibration, 100 SCFH, CO2, 1/4 NPT (M) Inlet, 5/8-18 RH(F) Outlet

$262.25 / each

23% off list $342.07

Our Id: VIC1000-0264
Manufacturer Id: 1000-0264

Quantity:

Add To Cart

Add To List

Est. 8 day delivery.

Check Store Inventory

Detailed Description

Part Number: 1000-0264

DESIGN/CONSTRUCTION
• Gas flow measurement in SCFH
• MIG / TIG applications
• Flowtube and outer tube are made of impact
resistant lexan for severe applications
• Pressure compensated for low surge requirement
• Cover tube contains overpressure protection

All Victor flow meters are back pressure compensated to ensure accurate readings at all times, even if line
restrictions are present. All flow meters are calibrated to operate at 25 PSIG inlet pressure to minimize surge, except the FM 200 which is calibrated to operate at 80 PSIG.

WARNING: Not designed for cylinder use.
Do not exceed calibrated inlet pressure.

Technical Details

Flow Range (SCFH)	30-100 CO2
Inlet Fitting	1/4" NPT (M)
Inlet Pressure (PSIG)	80
Model No.	FM 200
Outlet Fitting	5/8"-18 RH(F)
Part No.	1000-0264
Replacement Flow Tube	1015-0066
