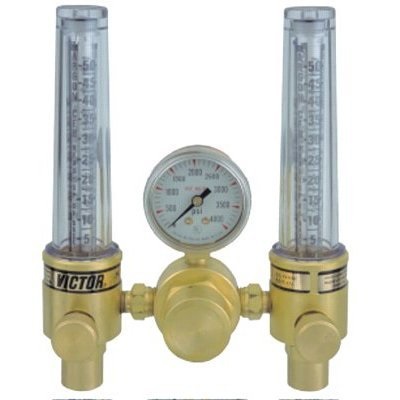

Victor Professional Dual Flow Meter DFM 150, Light Duty, 50/50 SCFH, Ar/He, 580

$709.42 / each

23% off list $925.32

Our Id: VIC0781-1153
Manufacturer Id: 0781-1153

Quantity:

Add To Cart

Add To List

Est. 8 day delivery.

Check Store Inventory

Detailed Description

Part Number: 0781-1153

DESIGN/CONSTRUCTION
• Designed to monitor two separate processes or gas flows
• Ideal for applications where shielding gas
and back purge requirements are needed
• Designed to offer convenience for the
maintenance and fabrication industries
• Brass body
• Teflon seat mechanism
• Sintered inlet filter - bronze
• Music wire - spring
• Piston - brass
• Cover tube - lexan

DIMENSIONS
5.5" W x 6.5" H x 5" D
(139.7 mm x 165.1 mm x 127.0 mm)

WEIGHT
2 lb. 9 oz. (1.16 kg)

PERFORMANCE
Maximum inlet - 3000 PSIG DFM 150 75 PSIG DFM 150S
Outlet pressure - 25 PSIG (preset)
Flow Capacity (See below)
Flow meter shows actual flow

Technical Details

CGA Inlet Connection	580
Flow Range (SCFH)	5-50 (Argon) 20-150 (Helium)
Gas Service	Argon, Helium
HP Gauge	0-4000
Max Inlet (PSIG)	3000
Model No.	DFM 150-580
Part No.	0781-1153
Replacement Flow Tube	1015-0057

Documents

Technical Sales Brochure -- Victor Flowmeter_(36-39 65-2007)
