Smoothcor 81T1-B6 is a low alloy steel electrode intended for single and multiple pass, all position welding of certain chromium-molybdenum steels where a weld deposit of 5 percent chromium and 1/2 percent molybdenum is required

• The smooth arc transfer, low spatter and fast freezing slag make this an excellent choice for welding in all positions
• Increased deposition rates over covered and stick electrodes and a greater tolerance of mill scale and rust
• This requires careful control of preheat and interpass temperatures, as well as proper post weld heat treatment
• The weld metal is intended to resist creep and maintain strength at elevated temperatures
• 25 volt (vertical up), 26 volt (overhead), 28 volt (flat)
• 305 in./min. (vertical up/overhead), 450 in./min. (flat) wire feed speed

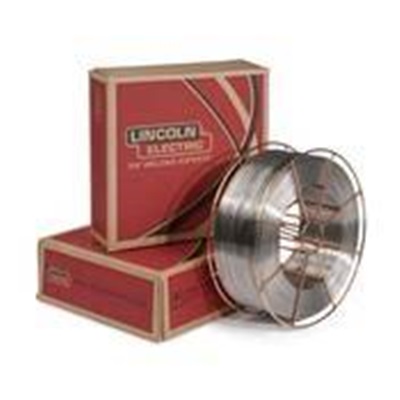

Unibraze Smoothcor 81T1-B6 81T1B604533 Flux-Cored Electrode, Gas Shielded, Diameter: .045 Inch, Amperage: 250 amp (Flat), 190 amp (Overhead/Vertical Up), Package: 33 lb, AWS Class: AWS A5.29: E81T1-B6M, Tensile Strength: 89000 psi SR 2 hr at 1375 deg F (75% Argon/25% CO2), Yield Strength: 71200 psi SR 2 hr At 1375 deg F (75% Argon/25% CO2), Elongation in 2" (%): 20% SR 2 hr At 1375 deg F (75% Argon/25% CO2), Charpy V-Notch: 60 ft.-lb. At 70 deg F (75% Argon/25% CO2), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.08% Carbon (C), 0.47% Manganese (Mn), 0.006% Phosphorus (P), 0.010% Sulphur (S), 0.27% Silicon (Si), 4.85% Chromium (Cr), 0.56 Molybdenum (Mo), Applicable Materials: Low Alloy, Mild Steel, Chromium-Molybdenum Steel
