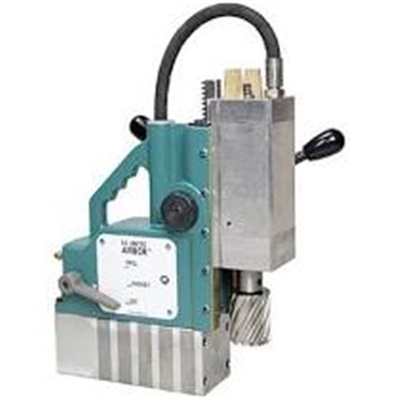

Unitec Airbor Pneu. Mag Drill UNTAB4300-2 UNTAB4300-2

Detailed Description

  • Inherently safer than electromagnetic drills in hazardous atmospheres and wet environments where electricity requires "hot work permits"
  • Completely air-operated
  • Pressurized coolant system lubricates cutter and reduces risk of sparking
  • Motor Power (Pneumatic) 1.6HP
    Air Consumption @ 90 PSI 64 CFM
    (1/2" NPT Air Connection)
    Hole Capacity 2-1/16" dia.
    Stroke Length with Cutters 4-7/8"
    Stroke Length with Twist Drill 1-3/4"
    No Load Speed 400 RPM
    Magnet Base Size 8-3/4" W x 3-1/2" L
    Dimensions 13-1/2" H x 12-1/2" L x 4-3/4" W
    Height - Closed 13-1/2"
    Height - Open 17-1/2"
    Magnetic Force (1" Plate) 1600 lbs.
    Arbor Bore 3/4" Weldon Shank
    Weight 38 lbs. (18kg)
    Automatic Lubrication Included
