Increase productivity with longer life front end consumables using Tweco® Spray Master MIG gun series with eliminator front end consumables. Combined with all the advantages of the Spray Master, this new line of mig guns helps the shop floor lower usage cost with improved operator appeal

• Easy identification - part no rolled stamped on the outside surface of the brass stop
• 3-piece nozzle design - does not require an additional insulator
• Nozzle housing - cut and formed from copper alloy tubing
• Nozzle insert - machined from a solid brass allow and machining the internal threads to match the conductor tube od threads
• Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
• Nozzle threads onto the conductor tube assembly
• Used in heavy-duty welding application up to 450 amp
• Self-insulated
• Gas metal arc welding process (air- cooled)
• WS23H-62 Model

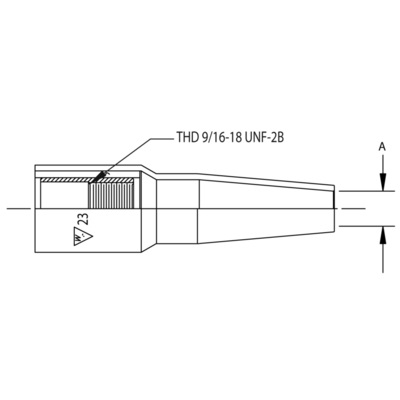

Tweco® WeldSkill® 1230-1221 MIG Gun Consumable, Nozzle, Style: Thread-On, 0.97 Inch Outer Diameter x 3.219 Inch Length, 1/8 - 5/32 Inch Recessed, Connection: 9/16-18 UNC-2B, Copper Alloy, Tip Size: 5/8 Inch, Amperage: 450 amp, Series: 23 Series, For Type/Brand/Model: No. 54P, 54A, 54A-16 Standard Gas Diffuser, No. 3 And 4 MIG Gun
