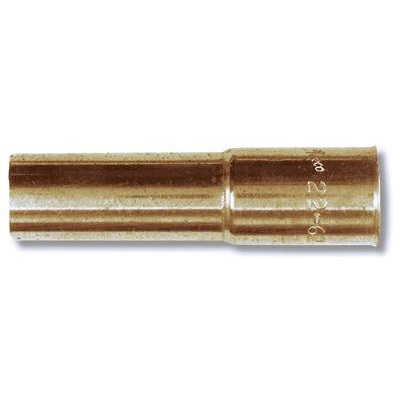

Tweco HD22 Series HD22-62 Nozzle (5/8) Tip Recess

$18.54 / each

Our Id: TWE1220-1307
Manufacturer Id: 1220-1307

Quantity:

Add To Cart

Add To List

Est. 2 day delivery.

Check Store Inventory

Detailed Description

Part Number: 12201307

Used in heavy duty welding application up to 250 amperes
3-piece nozzle design, includes:
Nozzle Housing - Cut & Formed from 122 DHP copper alloy tubing
Nozzle Insert - machined from a solid brass allow and is crimped in place to allow the nozzle to slide over a metal spring which is part of the gas diffuser
Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser

Easy identification - Part No. rolled stamped on the outside surface
3-piece design - does not require an additonal insulator

Technical Details

Bore Size	.625" (15,9mm)
Contact Tip Relationship	Recess - .125" (3,17mm) to .156" (3,96mm)
Fits Standard Gas Diffuser	Part No. HD52-11 (Stock No. 1520-1130)
Material	122 DHP Copper Alloy
Outside Diameter (in/mm)	.875" (22,23mm)
Overall Length (in/mm)	2.383" (60,53mm)
Process(es)	GMAW - Air-cooled
Standard Package Quantity	2 Each
Tier	Professional

Documents

Master Catalog -- Tweco MIG Guns, MIG Consumables & Welding Accessories Catalog_(64-2103)_Oct2011

Technical Sales Brochure -- Tweco Optional Nozzles & Insulators and Heavy Duty Style Nozzles_(35 64-2103)
