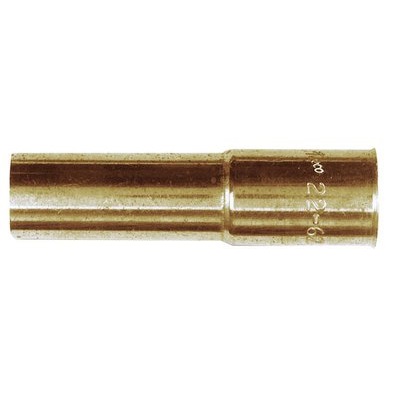

Tweco 22 Series 22-62 Nozzle (5/8) Tip Recess to Protruding

$8.76 / each

Our Id: TWE1220-1120
Manufacturer Id: 1220-1120

Quantity:

Add To Cart

Add To List

Est. 7 day delivery.

Check Store Inventory

Detailed Description

Part Number: 12201120

Used in light to medium duty welding application up to 250 amperes
Nozzle Housing - Cut and Formed from 122 DHP copper alloy tubing

Easy identification - Part No. rolled stamped on the outside surface
Nozzle slides over the standard nozzle insulator - Part No. 32 (Stock No. 1320-1100)
Nozzle is adjustable to obtain the contact tip and nozzle relationship wanted

Technical Details

Bore Size	.625" (15,9mm)
Contact Tip Relationship	Adjustable Recess to Protruding
Material	122 DHP Copper Alloy
Outside Diameter (in/mm)	.750" (19,5mm)
Overall Length (in/mm)	2.100" (53,34mm)
Process(es)	GMAW - Air-cooled
Standard Package Quantity	2 Each
Tier	Professional
Use with Standard Gas Diffuser	Part No. 52 (Stock No. 1520-1101)

Documents

Master Catalog -- Tweco MIG Guns, MIG Consumables & Welding Accessories Catalog_(64-2103)_Oct2011

Technical Sales Brochure -- Tweco Standard Nozzles & Nozzle Insulators No. 1, 2, & 3 Guns_(37 64-2103)
