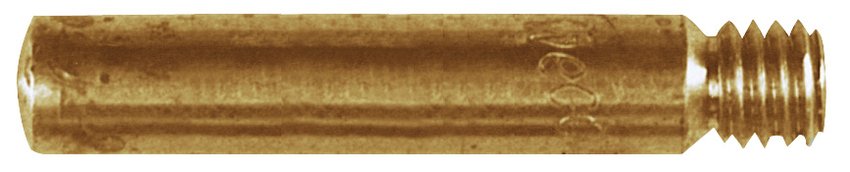

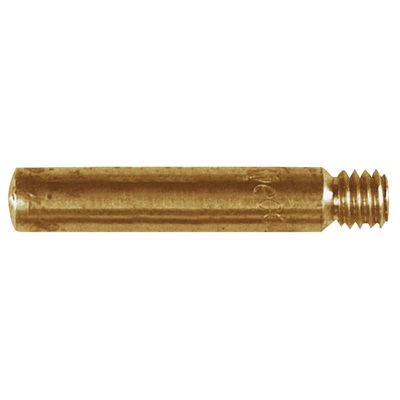

Tweco 14-564 Contact Tip (5/64)

$1.71 / each

Our Id: TWE1140-1109
Manufacturer Id: 1140-1109

Quantity:

Add To Cart

Add To List

Est. 7 day delivery.

Check Store Inventory

Detailed Description

Part Number: 11401109

Machined using a copper alloy tubing providing a consistant and smooth inside diameter surface
Threaded style contact tip to ensure proper contact with a gas diffuser when installed to the MIG gun
Used in standard welding application up to 400 amperes

Easy identification - Each contact tip is marked showing Part No. and wire diameter
Excellent electrical properties
Inside diameter tolerance is held to +/-.003"

Technical Details

Material	122 DHP Copper Alloy
Nominal Inside Diameter (in/mm) (Tolerance - +/-.003")	.090" (2,29mm)
Outside Diameter in/mm)	.250" (6,35mm)
Overall Length (in/mm)	1.50" (38,1mm)
Process(es)	GMAW
Standard Package Quantity	25 Each
Thread Size	1/4"-28 UNF-2A
Tier	Professional
Wire Diameter (in/mm)	5/64" (2,0mm)

Documents

Master Catalog -- Tweco MIG Guns, MIG Consumables & Welding Accessories Catalog_(64-2103)_Oct2011

Technical Sales Brochure -- Tweco Standard Contact Tips -14 Series_(56 64-2603)

Technical Sales Brochure -- Tweco Standard Contact Tips_(31 64-2103)
