Stable arc characteristics and good penetration are what you can expect to get from Unibraze 6011 electrode. Designed for use with AC power sources, Unibraze 6011 has high operator appeal and produces a fine spray transfer that is ideal for all welding positions. Excellent choice for welding on steels that cannot be completely cleaned or where the steel is rusty or painted
- Quick starting
- Superior arc drive
- Excellent wet-in characteristic
- Slag detaches easily
- Easy arc striking
- Excellent penetration
- Easy weld lay-in and smooth bead appearance
- Quick clean-up
- Flat, horizontal, vertical up, overhead welding positions
- 2.57 lb/hr at 100 amp deposition rate, 67.2% at 100 amp efficiency
- 24 volt

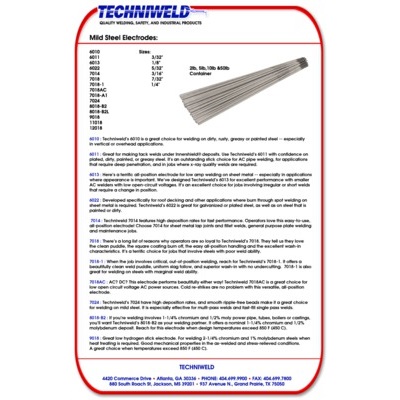

Techniweld Unibraze® HN601112510 Welding Electrode, Diameter: 1/8 Inch, Current Type: AC/DC+, Amperage: 80 - 125 amp, Package: 10 lb Can, AWS Class: AWS A5.1: E6011, Coating: Cellulose Potassium, Tensile Strength: 77700 psi (As Welded), Yield Strength: 63200 psi (As Welded), Elongation in 2" (%): 25% (As Welded), Charpy V-Notch: 30 ft.-lb. At -20 deg F Temperature (As Welded), Reduction in Area: 22 - 63% (As Welded), Welding Process: SMAW (Stick), Weld Metal Composition: 0.14% Carbon (C), 0.47% Manganese (Mn), 0.009% Phosphorus (P), 0.009% Sulfur (S), 0.18% Silicon (Si), Applicable Materials: Steel
