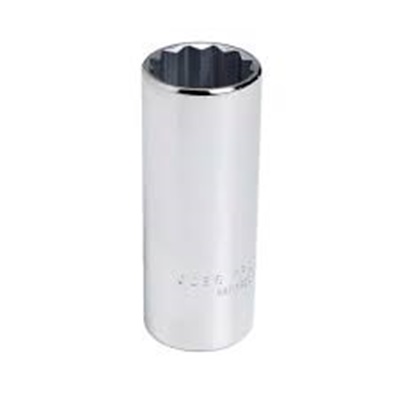

Proto 3/8&quot; Drive Deep Socket 7/16&quot; - 12 Point � PRTJ5014

Detailed Description

Features and benefits

  • Proto® 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded or rusted fasteners.

Technical Details

Bolt Clearance Depth [in]
1-11/16
Drive end Outside Diameter [in]
21/32
Drive Size [in]
3/8
Finish
Full Polish
Length Type
Deep
Nut Depth [in]
7/16
Nut End Outside Diameter [in]
21/32
Overall Length [in]
2-1/8
Point Size
12
Size [in]
7/16
Specification AS
AS954E S3.8.1
Specification ASME
ASME B107.110-2012
Unit of Measure
Fractional
Weight [Lbs]
0.12
