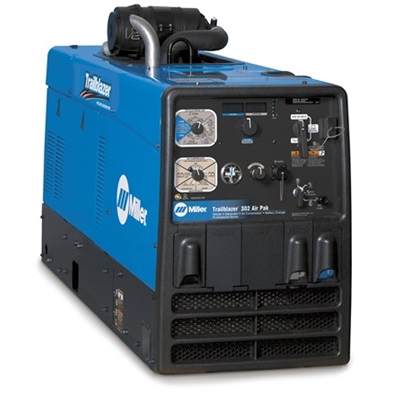

Miller Trailblazer 302 Air Pak, Kohler 907549001 MIL907549001

Detailed Description

https://www.millerwelds.com/-/media/inriver/ed478-trailblazer-302-air-pak--english.pdf

PROCESSES

Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)
Compressed Air

GENERAL SPECIFICATIONS

Title Trailblazer® 302 Air Pak™
Industries Interests Construction
Farm and Ranch
Infrastructure
Maintenance and Repair - Field Operations
Manufacturing
Mechanical Contracting
Work / Service Trucks
Pipe Fabrication / Construction
Railcar
Cross Country Pipeline
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed 3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Gasoline
Horsepower 27 hp
Weldable Metals Aluminum
Steel
Stainless Steel
Rated Output CC/AC 200 A at 25 V, 60% Duty Cycle
CC/DC 280 A at 32 V, 100% Duty Cycle
CV/DV 350 A at 32 V, 60% Duty Cycle
300 A at 32 V, 100% Duty Cycle
Single Phase Generator Continuous Power 11000 W
Single Phase Generator Peak Power 13000 W
Sound Rating 73.4 dB @ idle and 81.2 db @ weld dB
Current Type AC / DC
Amperage Range 10 - 300
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Weld Output CC / CV
Net Width 20 in
Net Height 34.5 in
Net Length 59.625 in
Net Weight 771 lbs
Warranty 3 Years
Engine Warranties
Miller's True Blue Warranty

Technical Details

Amperage Range
10 - 300
Current Type
AC / DC
Engine Brand
Kohler
Engine Idle Speed
2400 RPM
Engine Weld Speed
3600 RPM
Fuel Tank Size
12 Gallon
Fuel Type
Gasoline
Horsepower
27 hp
Industries Interests
ConstructionFarm and RanchInfrastructureMaintenance and Repair - Field OperationsManufacturingMechanical ContractingWork / Service TrucksPipe Fabrication / ConstructionRailcarCross Country Pipeline
Net Height
34.5 in
Net Length
59.625 in
Net Weight
771 lbs
Net Width
20 in
Portability
Lift Eye (Standard)Running Gear / Cart (Optional)Trailer (Optional)
Rated Output
CC/AC 200 A at 25 V, 60% Duty Cycle CC/DC 280 A at 32 V, 100% Duty Cycle CV/DV 350 A at 32 V, 60% Duty Cycle 300 A at 32 V, 100% Duty Cycle
Single Phase Generator Continuous Power
11000 W
Single Phase Generator Peak Power
13000 W
Sound Rating
73.4 dB @ idle and 81.2 db @ weld dB
Title
Trailblazer® 302 Air Pak™
Warranty
3 Years Engine Warranties Miller's True Blue Warranty
Weld Output
CC / CV
Weldable Metals
AluminumSteelStainless Steel
