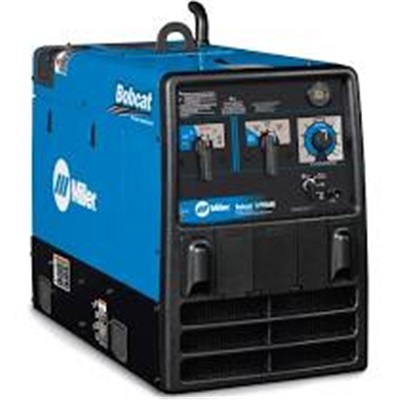

Miller Bobcat 3 Phase Kohler Gfci 907505 MIL907505

Detailed Description

PROCESSES

Flux Cored (FCAW)
MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Plasma (PAC)

GENERAL SPECIFICATIONS

Title Bobcat™ 3 Phase (Kohler), GFCI
Industries Interests Farm and Ranch
Maintenance and Repair - Field Operations
Work / Service Trucks
Fabrication
Engine Brand Kohler
Engine Idle Speed 2300 RPM
Engine Weld Speed 3600 RPM
Fuel Tank Size 12 Gallon
Fuel Type Gasoline
Horsepower 23.5 hp
Weldable Metals Aluminum
Stainless Steel
Steel
Rated Output CC/AC Stick/TIG 200 A at 25 V, 100% duty cycle,CC/DC Stick/TIG 210 A at 25 V, 100% duty cycle,CV/DC MIG/FCAW 200 A at 25 V, 100% duty cycle
Single Phase Generator Continuous Power 9500 W
Single Phase Generator Peak Power 11000 W
Sound Rating 72 dB @ idle and 73.5 db @ weld
Three Phase Generator Continuous Power 10000 W
Three Phase Generator Peak Power 11000 W
Current Type AC / DC
Amperage Range Amperage Min Max 50 - 210
Portability Lift Eye (Standard)
Running Gear / Cart (Optional)
Trailer (Optional)
Weld Output CC / CV
Net Width 20 in
Net Height 28 in
Net Length 40.5 in
Net Weight 495 lbs
Warranty 3 Years
Miller's True Blue Warranty
