Designed specifically for use with high argon mixed gas, UltraCore® 71A85 delivers Lincoln's best arc characteristics for gas-shielded flux-cored welding. Shipbuilders and structural fabricators like it because it runs well - it's our best running E71T-1 for high argon gas blends, and it delivers great arc stability and fast freezing slag for easy out-of-position welding, even with 1/16 Inch diameter wire. This wire is carefully protected from moisture contamination using the new ProTech™ foil bag packaging system

• Fast freezing slag for out-of-position welding
• Designed for welding with 75 - 85% argon/balance Co2 shielding gas
• Premium arc performance and bead appearance
• Meets AWS D1.8 seismic lot waiver requirements
• Mixed shielding gas
• All welding positions
• 40 - 50 cfh gas flow
• FEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found in the Lincoln Electric certificate center
• 2.4 - 5.7 kg/hr (all position), 6.2 - 7.6 kg/hr (flat and horizontal) melt-off rate
• 86 - 88% efficiency
• 3.2 - 7.6 m/min (all position), 8.3 - 10.2 m/min (flat and horizontal) wire feed speed
• 20 - 30 volt (all position), 26 - 33 volt (flat and horizontal)
• 2.1 - 5 kg/hr (all position), 5.4 - 6.6 kg/hr (flat and horizontal) deposition rate
• 6 - 8mL/g diffusible hydrogen content

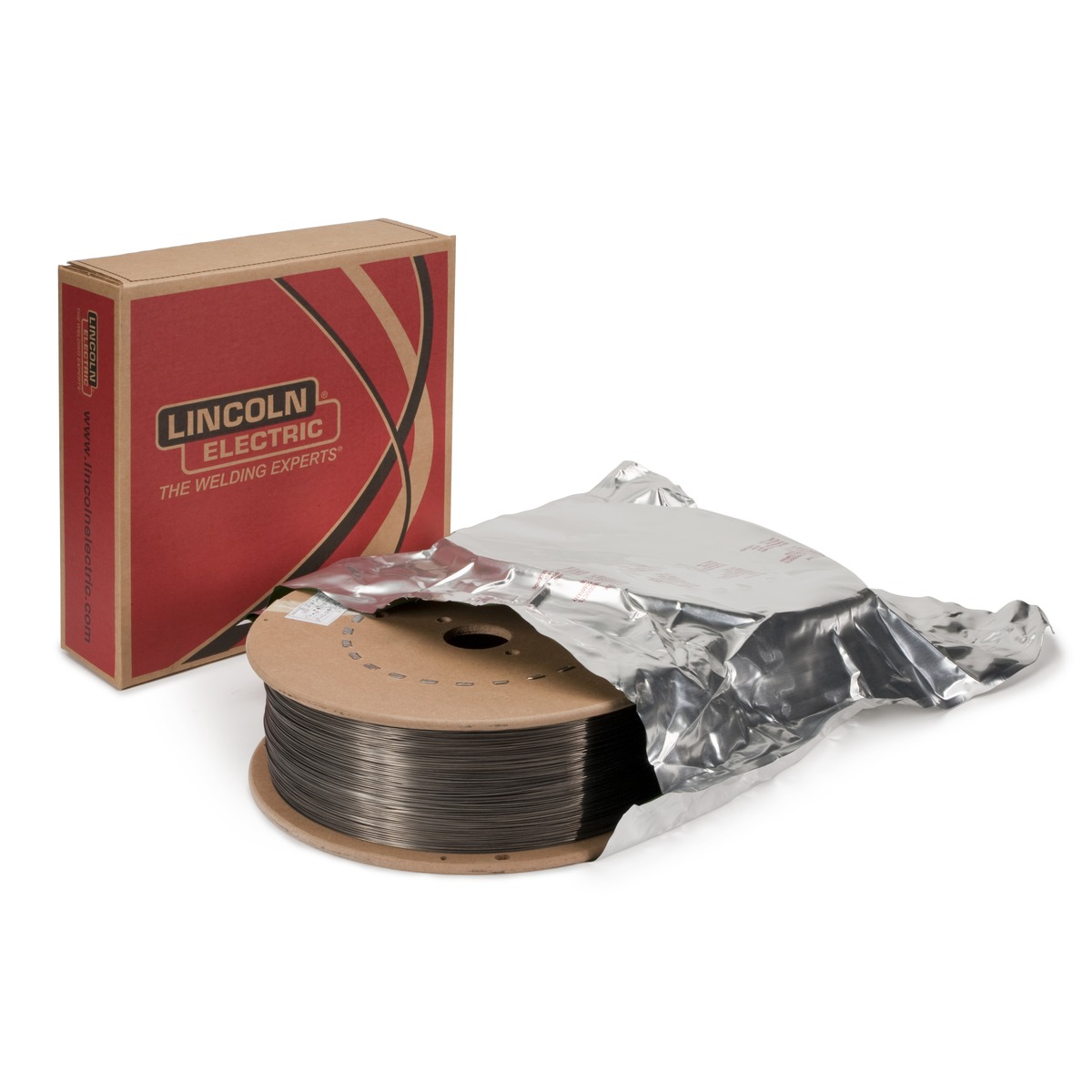

Lincoln® UltraCore® 71A85 ED031849 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: 1/16 Inch, Current Type: DC+, Amperage: 185 - 315 amp (All Position), 335 - 385 amp (Flat And Horizontal), Package: 50 lb Fiber Spool, AWS Class: AWS A5.20/A5.20M: 2005 - E71T-1M-H8, E71T-9M-H8, Tensile Strength: 87 - 94 ksi (As Welded), Yield Strength: 80 - 88 ksi (As Welded), Elongation in 2" (%): 24 - 26% (As Welded), Charpy V-Notch: 64 - 115 J At -18 deg C, Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.04% Carbon (C), 1.43 - 1.56% Manganese (Mn), 0.52 - 0.59% Silicon (Si), <0.01% Sulphur (S), 0.01% Phosphorus (P)
