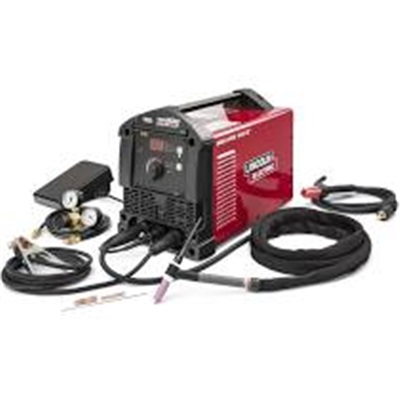

Lincoln Square Wave Tig 200 Tig Welder K5126-1 LINK5126-1

Detailed Description

  • Advanced features yet easy to use
  • A great TIG machine for aluminum
  • TIG and stick from one power source
  • Take it Everywhere, Plug in Anywhere.™

Input Power

  • 120/230/1/50/60

Processes

AC/DC TIG, Stick

Technical Details

Dimensions (H x W x D)
14 in x 10.75 in x 19.25 in (358 mm x 282 mm x 502 mm)
Input Current
120V:TIG: 25% Duty Cycle 21A TIG: 40% Duty Cycle 17A TIG: 60% Duty Cycle 14A Stick: 20% Duty Cycle 19AStick: 60% Duty Cycle 16A 230V:TIG: 25% Duty Cycle 22ATIG: 40% Duty Cycle 17ATIG: 60% Duty Cycle 13A
Input Power
120/230/1/50/60
Net Weight
46.50 (21.09 kg)
Output Range
120V:TIG: 10-125AStick: 10-90A230V:TIG: 10-200AStick: 10-170A
Rated Output
120V:TIG: 125A/25% (AC TIG 110A/25%)TIG: 100A/40%TIG: 85A/60%Stick: 75A/20%Stick: 65A/60% 230V:TIG: 200A/25%TIG: 160A/40%TIG: 130A/60%Stick: 170A/20%Stick: 100A/60%
