Outershield® 71M is an overall performer. From excellent feedability to good arc performance, welders enjoy using 71M. Outershield® 71M is extremely stiff because of the unique manufacturing process that we use to make this product. No side cutters are required to restart, just break the wire off in your hands - it's that easy
- Dual classified for both 100% Co2 and 75% argon/25% Co2 mixed gas
- 40 - 50 cfh gas flow
- High travel speeds
- Spray like transfer with minimal spatter
- Rod based manufacturing for industry leading wire stiffness and feedability
- Increased rigidity allows for easy manual break-off
- All, except vertical down welding positions
- Charpy v-notch impact toughness tested to -40 deg C
- 1.3 - 4.4 kg/hr (100% Co2) melt-off rate
- 85 - 86% (100% Co2) efficiency
- 5.1 - 17.8 m/min (100% Co2) wire feed speed
- 20 - 33 volt
- 1.1 - 3.8 kg/hr (100% Co2) deposition rate

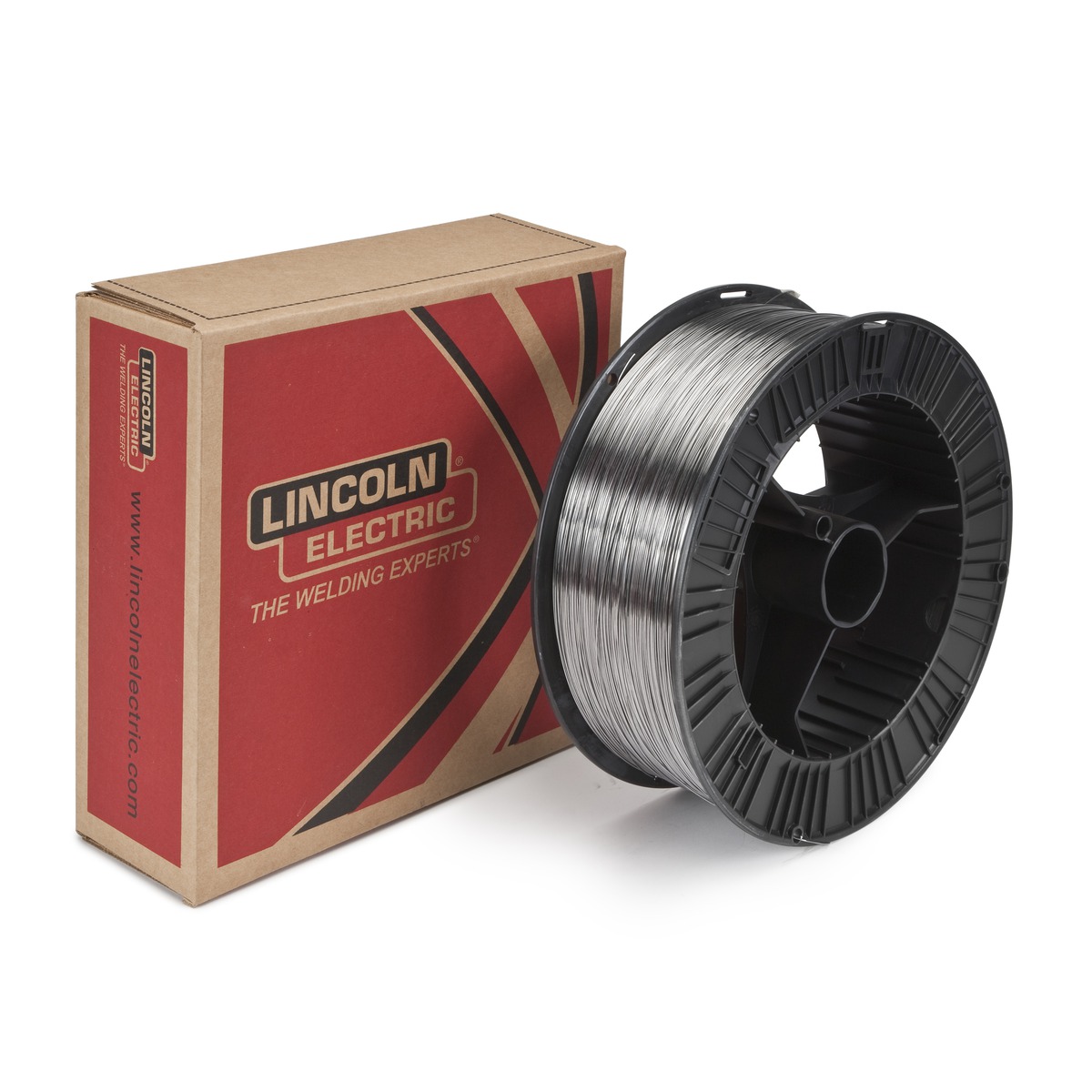

Lincoln® Outershield® 71M ED026805 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: 0.035 Inch, Current Type: DC+, Amperage: 95 - 215 amp (100% CO2), Package: 25 lb Plastic Spool, AWS Class: AWS A5.20/A5.20M: 2005 - E71T-1C-J, E71T-9C-J, E71T-1M-J, E71T-9M-J, Tensile Strength: 81 - 91 ksi, Yield Strength: 72 - 83 ksi, Elongation in 2" (%): 27 - 29%, Charpy V-Notch: 176 - 190 J At -18 deg C, Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.05 - 0.07% Carbon (C), 1.04 - 1.60% Manganese (Mn), 0.25 - 0.50% Silicon (Si), <= 0.01% Sulphur (S), <0.01% Phosphorus (P)
