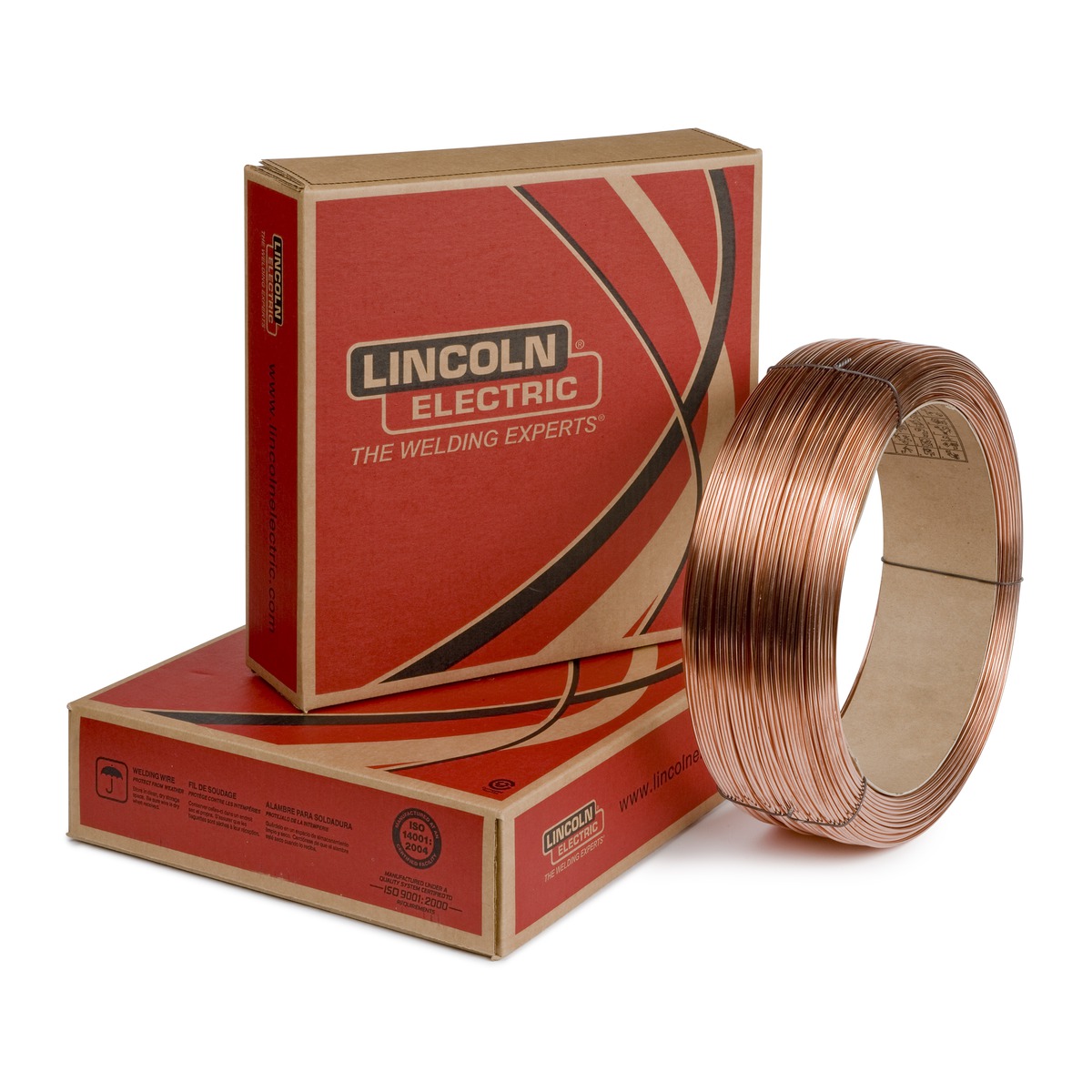

Lincoln Lincolnweld La-90 Ed011084 Solid Ea3k Carbon Steel Welding Wire, 3/32 Inch Dia., 60 Lb Coil ED011084 LINED011084

Detailed Description

Lincolnweld® LA-90 is a low carbon, high manganese, high silicon, 1/2% molybdenum special purpose wire. It is recommended for seam welding of pipe and for the general welding of high strength plate

Features
  • Consistent weld deposit chemistry and procedures from package to package improve quality and save time, has no soft spots - set the welding procedures once and forget about 'em, thin copper coating yields significantly improved electrical contact between wire and contact tip for better arc stability and longer tip life, low feed forces reduce wear and tear on equipment
  • Has no soft spots
  • Thin copper coating yields significantly improved electrical contact between wire and contact tip for better arc stability and longer tip life
  • Low feed forces reduce wear and tear on equipment

Lincoln® Lincolnweld® LA-90 ED011084 Carbon Steel Welding Wire, Solid, Diameter: 3/32 Inch, Package: 60 lb Coil, AWS Class: AWS A5.23/A5.23M: 2007: EA3K, Welding Process: MIG (GMAW And SAW), Weld Metal Composition: 0.05-0.15% Carbon (C), 1.6-2.1% Manganese (Mn), 0.5-0.8% Silicon (Si), 0.4-0.6% Molybdenum (Mo), 0.025% Sulphur (S), 0.025% Phosphorus (P), 0.35% Copper (Cu)

Technical Details

AWS Class
AWS A5.23/A5.23M: 2007: EA3K
Diameter
3/32 Inch
Package
60 lb Coil
Type
Solid
Weld Metal Composition
0.05-0.15% Carbon (C), 1.6-2.1% Manganese (Mn), 0.5-0.8% Silicon (Si), 0.4-0.6% Molybdenum (Mo), 0.025% Sulphur (S), 0.025% Phosphorus (P), 0.35% Copper (Cu)
Welding Process
MIG (GMAW And SAW)
