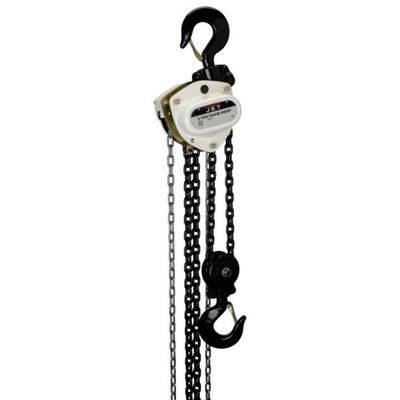

JET L100-300WO-10, 3 Ton Hoist with Overload Protection and 10' Lift

$1,100.00 / each

Our Id: JET106100
Manufacturer Id: 106100

Quantity:

Add To Cart

Add To List

Est. 10 day delivery.

Check Store Inventory

Detailed Description

JET® L-100 Series hand chain hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as optional overload protection prevents the hoist from lifting damaging loads beyond its rated capacity. The JET® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET® L-100 is available in ¼ ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET® L-100 Series hand chain hoist is engineered to perform.

Safety
Patented Fused Brake Design- Proven durability that increases safety with a lifetime replacement warranty
Overload Protection- Slip clutch design increases safety by preventing lifting or pulling damaging loads
Weston Style Dual Pawl Brake System- Double pawl design increases safety
Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
Durability
Sealed Ball Bearing Design- Increases efficiency and promotes smooth operation
Cast Steel Safety Latches- Increased durability with heavy duty safety latches secured with Allen screws and lock nuts
Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
Grade 100 Load Chain- Corrosive resistant grade 100 load chain is stronger than grade 80 load chain extending the life of the hoist
All Steel Construction- Impact resistant covers that provide durability and protection
Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
Standards
Industry- Complies with OSHA Regulations, ASNI / ASME B30.16 and HST-2 Standards
Certification- Factory tested to 125% of capacity with load test certificate
Warranty- 5 Year Warranty

Technical Details

Brand	Jet
Capacity	3 metric ton
Gross Weight	54.67 pound
Headroom	20 1/8 "
Height	11.02 inch
Length	12.6 inch
Load Chain Diameter	7.1 mm
Model Number	L100-300WO-10
Net Weight	52.91 pound
Number of Falls	2
Rated Capacity	6614 pound
Required hand chain (ft.) to lift load 1'	112
Required pounds of pull to lift capacity	79
Standard Lift	10 '
Width	7.48 inch
