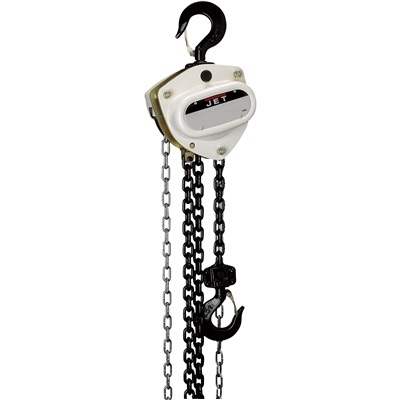

Jet 101941 Smh-3T-15 3 Ton 15&#39; Lift Chain Hoist (Old #101717) JET101941 JET101941

Detailed Description

JET S90-300-15, 3-Ton Hand Chain Hoist With 15' Lift

Description

JET® S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.

Features

  • Safety
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Durability
  • Grade 80 black oxide coated load chain for added durability
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • NEW! Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Impact resistant all steel construction for added durability and protection
  • The smaller body and lightweight design are ideal for confined areas and low headroom applications
  • Standards
  • This product complies with ANSI / ASME B30.16 and HST-2 Standards
  • Load tested to 125% of capacity with certificate

Technical Details

Hand Chain Overhaul (Ft.) to Lift Load 1Ft.
115
Hand Chain Pull Force (LBF) to Move Load
87
Headroom (In.)
20-1/2
Lift (Ft.)
15
Load Capacity (Tons)
3
Load Chain Dimensions (Mm.)
8 x 24
Number of Falls
2
Overload Protection
No
Weight (Lbs.)
90
