Dual Shield 7100 Ultra operates in a wider parameter range and generates less welding fumes than many similar welding wires. The low spatter levels and easy slag removal minimizes post weld cleanup. Dual Shield 7100 Ultra can be used with either 100% CO2 or 75% argon/25% CO2. This versatility in gas selection provides the fabricator greater flexibility in choosing both wire and gas

• 24 - 28.5 volt (shielding gas Co2)
• 150 - 400 in./min. wire feed speed (shielding gas Co2)
• 5.5 - 14.7 lb/hr deposition rate (shielding gas Co2)
• 85 - 88.1% efficiency (shielding gas Co2)
• 0.03% carbon (C), 1.6% manganese (Mn), 0.6% silicon (Si), 0.010% phosphorus (P), 0.012% sulphur (S) weld metal analysis for 75% argon/25% Co2

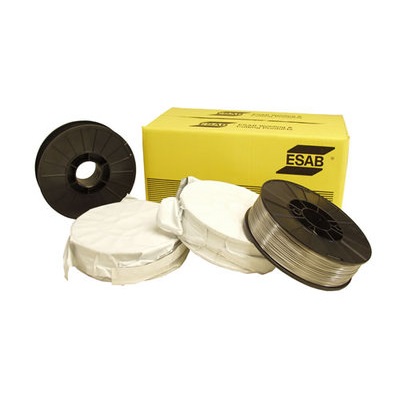

ESAB® Dual Shield 7100 Ultra® 248000028 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: 1/16 Inch, Amperage: 195 - 382 amp, Package: 33 lb Adapterless Wire Spool, AWS Class: AWS A5.20: E71T-1CH8/T-9M-D, Tensile Strength: 85 ksi (As Welded CO2), Yield Strength: 75 ksi (As Welded CO2), Elongation in 2" (%): 26% (As Welded CO2), Charpy V-Notch: 25 ft.-lb. At -29 deg C Testing Temperature (As Welded CO2), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.02% Carbon (C), 1.3% Manganese (Mn), 0.5% Silicon (Si), 0.010% Phosphorus (P), 0.013% Sulphur (S), Melting Range: >1000 deg C, Applicable Materials: General Structural Steel
