Dual Shield 7100 LC provides outstanding operator appeal with its easily controlled arc, improved operation at lower current levels, minimal spatter and easily removed slag. Dual Shield 7100 LC can be used with CO2 or 75% argon - 25% CO2 shielding, however pure CO2 is recommended in applications where restraint is high

• Low fume wire with excellent characteristics on low current
• 25 - 30.2 volt (shielding gas Co2)
• 150 - 600 in./min. wire feed speed (shielding gas Co2)
• 3.4 - 14.7 lb/hr deposition rate (shielding gas Co2)
• 74.3 - 82.7% efficiency (shielding gas Co2)

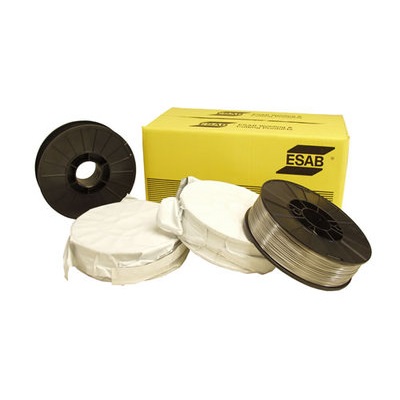

ESAB Dual Shield 7100 LC 248001091 Mild Steel Flux-Cored Wire, Gas Shielded, Diameter: .052 Inch, Amperage: 145 - 370 amp, Package: 15 lb Plastic Spool, AWS Class: AWS A5.20: E71T-1CHD8/T-1MDH8/T-9CDH8/T-9MDH8, Tensile Strength: 88 ksi (As Welded Using 75% Argon/25% CO2), Yield Strength: 83 ksi (As Welded Using 75% Argon - 25% CO2), Elongation in 2" (%): 25% (As Welded Using 75% Argon-25% CO2), Charpy V-Notch: 41 ft.-lb. At -29 deg C Testing Temperature (As Welded 75% Argon - 25% CO2), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.03% Carbon (C), 1.6% Manganese (Mn), 0.6% Silicon (Si), 0.010% Phosphorus (P), 0.010% Sulphur (S), Melting Range: >1000 deg C
