Dual Shield 7000-A1 is an all-position flux cored electrode recommended for 0.5% Mo steels. It is used in the fabrication and erection of boilers, pressure piping and tubing and other pressure vessel applications. Shielding gas of 100% CO2 and 75% Ar, remainder CO2 may be used. A 75% argon/25% CO2 shielding gas mixture is recommended to improve arc characteristics, increase wetting action, decrease penetration, and provide easier arc control for out-of-position welding. The weld metal analysis is similar to an E7018-A1 low hydrogen electrode
- 24 - 28.5 volt
- 200 - 500 in./min. wire feed speed
- 3.6 - 9.6 lb/hr deposition rate
- 77.8 - 83.1% efficiency

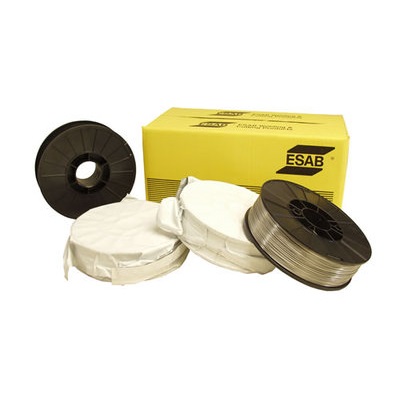

ESAB Dual Shield 7000-A1 245012521 Low Alloy Flux-Cored Wire, Gas Shielded, Diameter: .045 Inch, Amperage: 140 - 275 amp, Package: 33 lb Adapterless Wire Spool, AWS Class: AWS A5.29: E81T1-A1C/A1M, Tensile Strength: 92 ksi (As Welded), Yield Strength: 82 ksi (As Welded), Elongation in 2" (%): 22% (As Welded), Charpy V-Notch: 92 ksi Tensile Strength, 82 ksi Yield Strength, 22% Elongation (As Welded), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.05% Carbon (C), 0.9% Manganese (Mn), 0.6% Silicon (Si), 0.01% Phosphorus (P), 0.008% Sulphur (S), 0.55% Molybdenum (Mo), Melting Range: >1000 deg C, Applicable Materials: 1/2% Molybdenum (Mo) Steel
