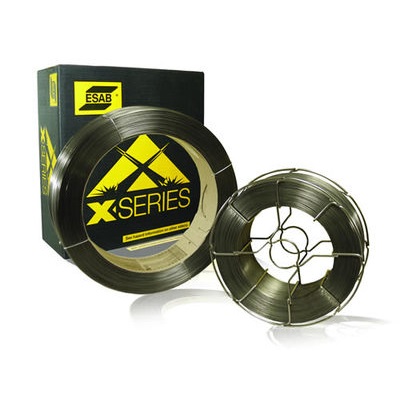

Esab Dual Shield Ds 710X 1/16X33#Aws 245019278 ESA245019278

Detailed Description

Dual Shield 710X is an all-position flux cored wire for general purpose welding. It provides outstanding operator appeal with an easily controlled arc, improved operation at both lower and higher current levels, minimal spatter and easily removed slag. Dual Shield 710X can be used with 100% CO2, recommended in applications where weld joint restraint is high. Applications include rail car, barges, civil construction, light equipment and general fabrication.


Industries

  • Civil Construction
  • Light Equipment
  • Barges
  • Industrial and General Fabrication
  • Ship/Barge Building
  • Railcars

Welding Process

  • FCAW - Flux Core Arc Welding

Technical Details

Approvals
L.R. - 3S,3YS
Charpy V-Notch Properties -- -20°F (-29°C)
50 ft-lb, 68 J
Charpy V-Notch Properties -- 0°F (-18°C)
57 ft-lb, 77 J
Charpy V-Notch Properties -- 0°F (-18°F)
75 ft-lb, 102 J
Classification(s)
AWS A5.20: E71T-1C-DH8/T-1M/T-9C-DH8/T-9M
Typical Mechanical Properties -- Elongation
27%
Typical Mechanical Properties -- Tensile Strength
93 ksi, 640 MPa
Typical Mechanical Properties -- Yield Strength
83 ksi, 570 MPa
Weld Metal Analysis -- C
0.03%
Weld Metal Analysis -- Mn
1.5%
Weld Metal Analysis -- Ni
0.4%
Weld Metal Analysis -- P
0.005%
Weld Metal Analysis -- S
0.009%
Weld Metal Analysis -- Si
0.6%
Welding Process
FCAW (Flux Core)
