Coreshield 15 is an all-position self-shielded flux cored welding wire for single pass applications. Coreshield 15 produces smooth arc action, full slag coverage, easy slag removal, and low spatter. The use of DCEN (electrode negative) current minimizes the risk of burn-through. Coreshield 15 is excellent for use on lap and fillet welds on thin gauge galvanized and mild steels in all welding positions. The availability of .030 Inch (0.8 mm) diameter makes it possible to use this product on materials as thin as 18 ga. (1.2 mm). The wire is particularly suitable for thin gauge materials 0.030 - 3/16 Inch (0.8-5.0 Inch) in galvanized, zinc-aluminum carbon, or aluminised carbon steels. In structural fabrications, the product can be used where no seismic requirements are present
- Longitudinal guided bend test is satisfactory
- 15 - 17 volt
- 81 - 392 in./min. wire feed speed
- 0.9 - 4.5 lb/hr deposition rate
- 75 - 81% efficiency

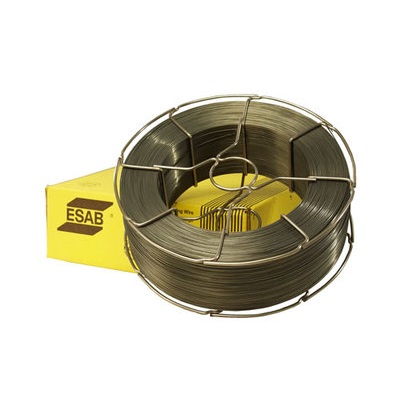

ESAB® Coreshield® 15 242201648 Flux-Cored Wire, Self-Shielded, Diameter: 0.035 Inch, Amperage: 80 - 200 amp, Package: 10 lb Plastic Spool, AWS Class: AWS A5.20: E71T-14, E71T-GS, Tensile Strength: 89 ksi Transverse (As Welded), Welding Process: FCAW (Flux Core), Weld Metal Composition: 0.23% Carbon (C), 0.7% Manganese (Mn), 0.4% Silicon (Si), 0.007% Phosphorus (P), 0.01% Sulphur (S), 2% Aluminum (Al), Melting Range: >1000 deg C, Applicable Materials: Thin-Gauge Materials 0.03 - 3/16 Inch Galvanized, Zinc-Aluminum Carbon Or Aluminized Carbon Steel
