This newest addition to the family offers the deep, penetrating arc and tough mechanical properties of the original Atom Arc 7018 with greater puddle control resulting in ease of use in out-of-position welding applications and superior arc initiation desired by many newer welders. Both novice and seasoned welders can appreciate its excellent weld performance, wide operating range and easy clean up. Greater puddle control resulting in easier out-of-position welds, superior arc initiation and ease of use with wider operating range and minimal clean-up

• Flat, horizontal, vertical up, overhead welding positions
• Medium penetration
• 2.6 lb/hr at 120 amp, 2.7 lb/hr at 140 amp deposition rate, 71.6% at 120 amp, 70.9% at 140 amp efficiency

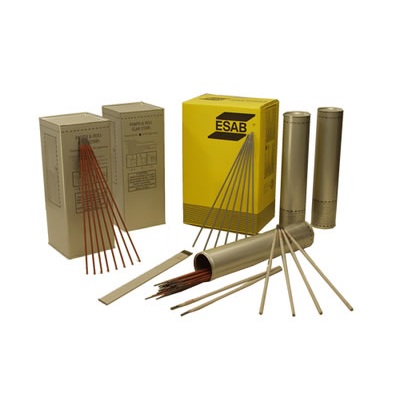

ESAB® AtomArc® 7018 Acclaim 255012015 Covered Electrode, Diameter: 1/8 Inch, Length: 14 Inch, Current Type: AC/DC+, Amperage: 90 - 160 amp, Package: 50 lb Hermetically Sealed Can, AWS Class: AWS A5.1: E7018, AWS A5.1: E7018H4R, Coating: Low Hydrogen Iron Powder, Tensile Strength: 79 ksi, Yield Strength: 65 ksi, Elongation in 2" (%): 36%, Charpy V-Notch: 170 ft.-lb. At -20 deg F Testing Temperature, Welding Process: SMAW (Stick), Weld Metal Composition: 0.05% Carbon (C), 1.20% Manganese (Mn), 0.45% Silicon (Si), 0.011% Phosphorus (P), 0.008% Sulfur (S), Melting Range: >2300 deg F
