Arcaloy 316L-17 plus electrodes have a heavy coating and produce a concave bead with minimal ripple. The slag is virtually self-cleaning. Molybdenum increases the resistance to pitting corrosion caused by corrosive media such as sulfuric and sulfurous acids, sulphites, chlorides and cellulose solutions. Ideal for welding types 316 and 316L stainless steels when bead appearance is important

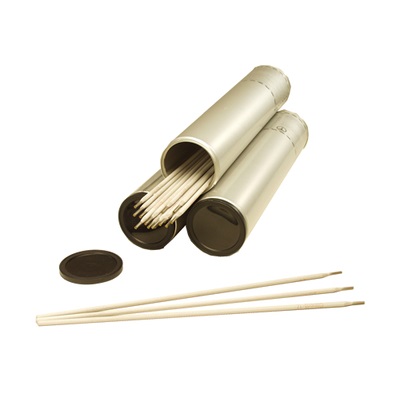

ESAB® Arcaloy® 316L-17 Plus 251311015 Covered Electrode, Diameter: 1/8 Inch, Length: 14 Inch, Current Type: AC/DC, Amperage: 90 - 120 amp (Flat), 70 - 80 amp (Vertical), 60 - 85 amp (Overhead), Package: 10 lb Hermetically Sealed Can, AWS Class: AWS A5.4: E316-17/E316L-17, Tensile Strength: 83 ksi, Yield Strength: 64 ksi, Elongation in 2" (%): 45%, Welding Process: SMAW (Stick), Weld Metal Composition: 0.02% Carbon (C), 0.6% Manganese (Mn), 0.6% Silicon (Si), 19% Chromium (Cr), 12% Nickel (Ni), 2.5% Molybdenum (Mo), 0.1% Copper (Cu), 7 FN Ferrite, Melting Range: >2300 deg F, Applicable Materials: 316, 316L Stainless Steel
