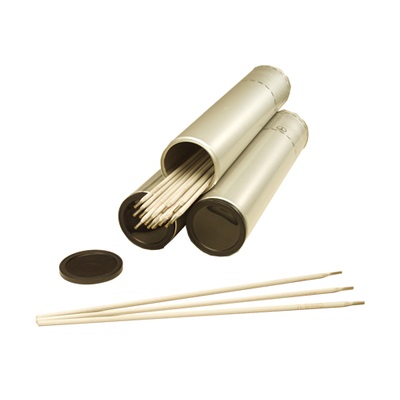

Esab Arcaloy Ac 309L-16 3/32X12x10#Hs 251053203 ESA251053203

Detailed Description

Arcaloy 309L-16 is used for welding carbon and low alloy steels to stainless steels. This can be done provided the service temperature does not exceed about 700°F (370°C). Post weld heat treatment should only be performed after due consideration.


Industries

  • Industrial and General Fabrication

Welding Process

  • SMAW/MMA (Stick)

Technical Details

Approvals
Certified by CWB to CSA W48
Classification(s)
AWS A5.4: E309L-16/E309-16
Typical Mechanical Properties -- Elongation in 2"
37%
Typical Mechanical Properties -- Tensile Strength
85 ksi, 590 MPa
Typical Mechanical Properties -- Yield Stress
65 ksi, 450 MPa
Weld Metal Analysis -- C
0.03%
Weld Metal Analysis -- Cr
23.5%
Weld Metal Analysis -- Cu
0.1%
Weld Metal Analysis -- Ferrite
9 FN
Weld Metal Analysis -- Mn
1.8%
Weld Metal Analysis -- Mo
0.3%
Weld Metal Analysis -- Ni
13.5%
Weld Metal Analysis -- Si
0.45%
Welding Process
SMAW (Stick)
